Description

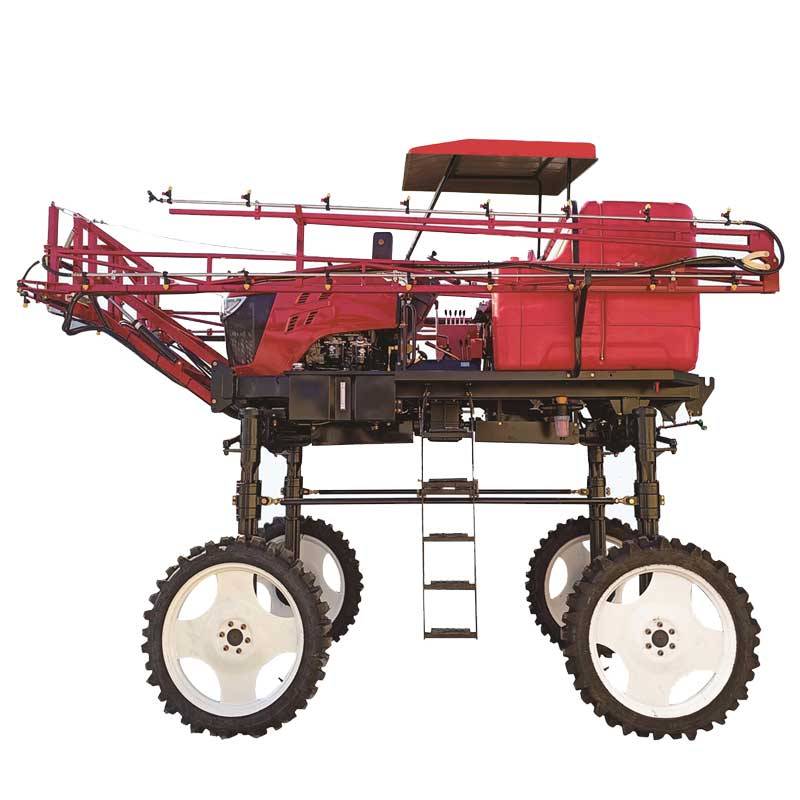

Product model | 3 WPZ-1500H (G4) |
Overall dimensions (mm) | 5750×2200×3350 |
Matching power | Diesel engine; 74kw |
Medicine tank capacity | 1500L |
Ground clearance | 161cm |
Spraying width | 20m |
Matching nozzle | Fan-shaped anti-drip sprinkler |
Matching liquid pump | Diaphragm pump; 100L/min |
Travel system | Hydraulic power assist; Four-wheel drive; Four-wheel steering |
Wheel width | 196cm |
Tyre type | Pneumatic rubber tire |
Spray boom control type | Hydraulic folding, hydraulic lifting |
Remarks | Standard simple shed, Optional cab With yellow can be customized: optional all white moving night pressure plus south analysis, highland barrier: 1.35-1.7m(500-32 inflation) 1.45-1.8m (500-42 inflatable) |
